Bobcat E10 – Compact Excavator
With a retracted track width of just 72cm. Easy to navigate through narrow openings and operate in confined spaces. Boasting zero tail swing. Makes light work of otherwise manual digging.
Horsepower – 10.2 hp
Operating Weight – 1176 kg
Bucket Digging Force – 1,865 lbf
Maximum Reach at Ground Level – 10.2 ft
Width – 28 in
Tail Swing Type – Zero
Bobcat E20z – Compact Excavator
The hydraulically retractable undercarriage allows the operator to retract the width of the tracks to only 98cm, to facilitate the excavator to travel through narrow gates or between walls and houses.The tracks can then be expanded to 136cm for greater stability and performance. With a zero tail swing, the Bobcat E20z is both manoeuvrable and versatile on even the most restricted sites.
Operating weight with cab and bucket (ISO 6016) – 2,019 kg
Transport mass (no attachment) – 1,902 kg
Ground pressure with rubber tracks – 31.1 kPa
Height – 2,297 mm
Track width – 230 mm

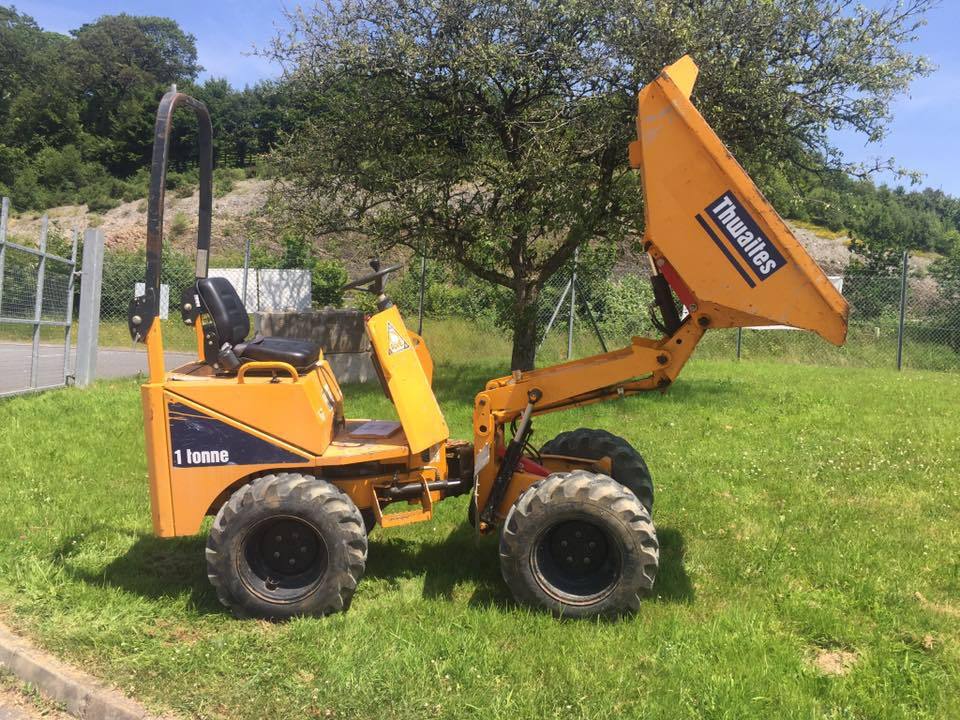

Thwaites – 1 Tonne Dumper
An old favourite, the Thwaites 1 tonne dumpers are easily transported by trailer and easy to use, making light work of landscaping and building works. These hi-tip dumpers are efficient skip loaders.
Max safe load – 1000 kg
Heaped – 585 litres
Struck – 430 litres
Water – 355 litres
Unladen Weight – 1300kg
Clearance Diameter – 5.55m
Cormidi 50 – Mini Dumper
Versatile and robust, extremely compact and handy for use on construction sites, easy movement of soil, in addition to agriculture work.
WEIGHT (KGS): 500
Capacity (m3): 0.23
Length (mm): 1550
Width (mm): 700
Hi-tip Height (mm): 1430
